2PF300
Product Description

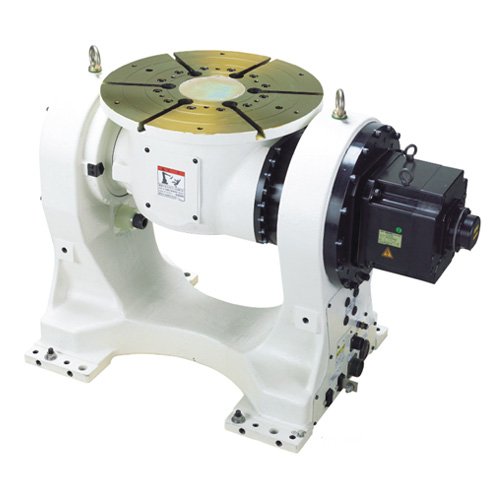

2-Axes Double Support Positioner 2PF Series * High-speed motion increases production efficiency! An increase in the maximum rotation speed of the tilting axis by 2.5 times and in rotation axis by 2 times was achieved in comparison with the conventional machine 300 kg payload type.
Technical Specifications
| Model Name | A2PF301-ENN |
| Max: Payload Capacity | 300 kg |
| Rotating Speed | 3.1 rad/s (180°/s) |
| Tilting Speed | 2.2 rad/s (125°/s) |
| Rotating Torque | 294 N·m |
| Tilting Torque | 882 N·m |
| Position Repeatability | ± 0.08 mm (Position at R250 mm) |
| Stop Position | Random |
| Mass (Weight) | 260 kg |
