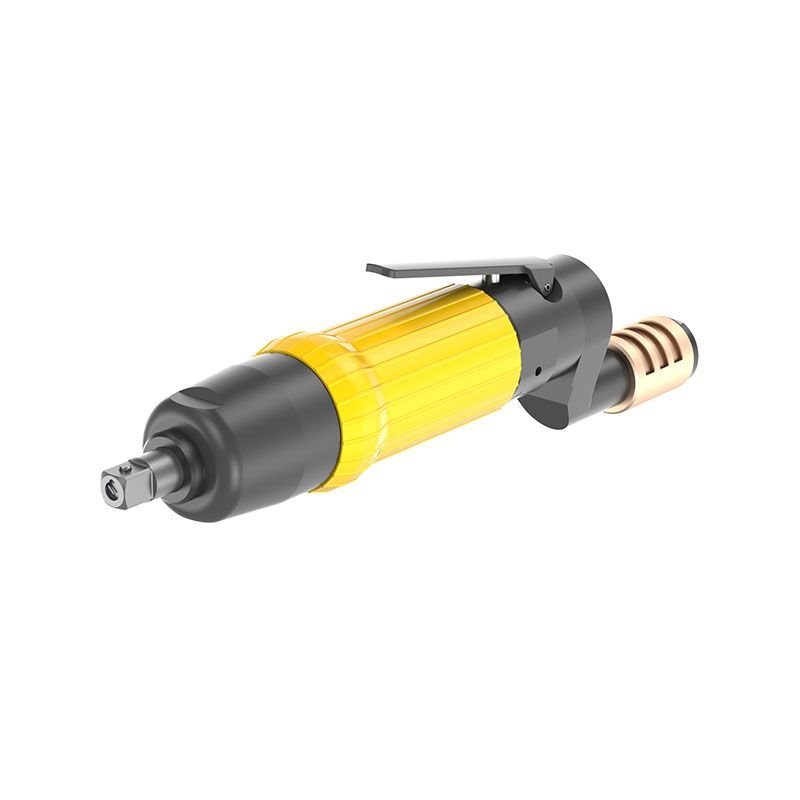

EP8PTX45 SR10-AT
Product Description
The Straight ErgoPulse PTX shut-off tool is the ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached. All PTX models can also be used as lubrication free, just like other ErgoPulse tools and is available in StandardTrim and AutoTrim version.
Technical Specifications
Specification
| Specification | Value |
| Air inlet thread | 1/4 in |
| Bolt size | M8 mm |
| CS distance | 25 mm |
| Length | 295 mm |
| Output size | 3/8" |
| Recommended hose size | 10 mm |
| Square drive | 3/8 in |
| Weight | 2.5 lb |
| Model type | Straight |
| Output type | Square, Male |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | Yes |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Free speed | 5900 r/min |
| Sound power | 92 dB(A) |
| Sound pressure | 81 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 1.2 m/s² |
| Vibration value | 7 m/s² |
| Air consumption under load | 19 cfm |
| Max working pressure | 100 psi |
| Nominal working pressure | 91 psi |
| Torque range max | 33 ft-lb |
| Torque range min | 18 ft-lb |
