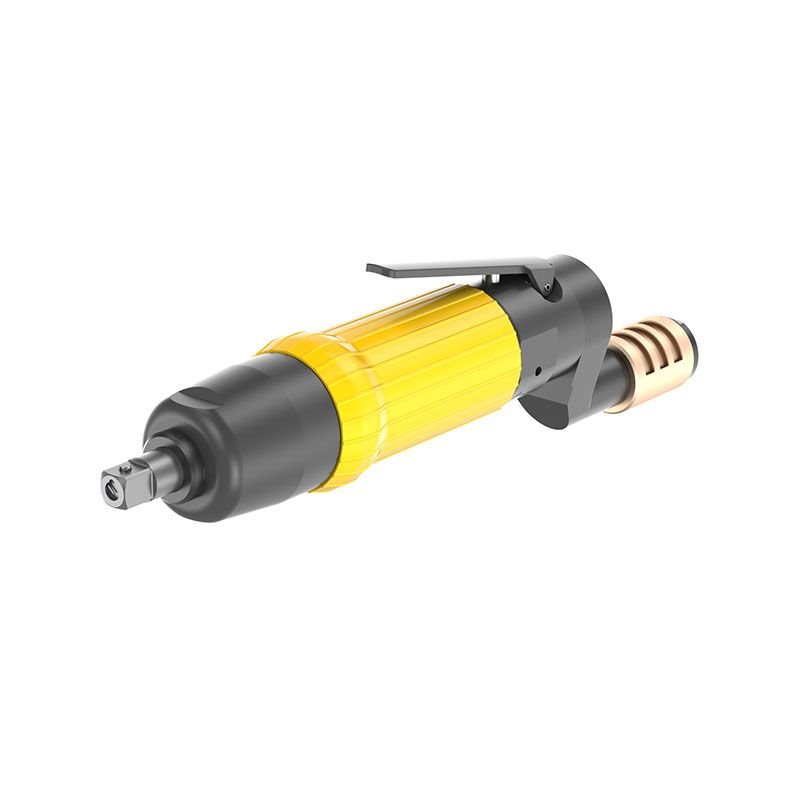

EP5PTX15 SR10-AT
Product Description
The Straight ErgoPulse PTX shut-off tool is the ideal choice if your operators need to speed up production with fast rundowns and short tightening cycles. It is a reliable and powerful shut-off pulse tool that automatically shuts off the air supply when the pre-set torque has reached. All PTX models can also be used as lubrication free, just like other ErgoPulse tools and is available in StandardTrim and AutoTrim version.
Technical Specifications
Specification
| Specification | Value |
| Air inlet thread | 1/4 in |
| Bolt size | M6 mm |
| CS distance | 21 mm |
| Length | 267 mm |
| Output size | 3/8" |
| Recommended hose size | 8 mm |
| Square drive | 3/8 in |
| Weight | 2 lb |
| Model type | Straight |
| Output type | Square, Male |
| SCIP | 9e6972b2-2f4b-487b-bd1c-d051871d8321 |
| Shut-off | Yes |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Free speed | 4800 r/min |
| Sound pressure | 78 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration uncertainty | 0.8 m/s² |
| Vibration value | 4.6 m/s² |
| Air consumption under load | 15 cfm |
| Max working pressure | 100 psi |
| Nominal working pressure | 91 psi |
| Torque range max | 11 ft-lb |
| Torque range min | 7 ft-lb |
