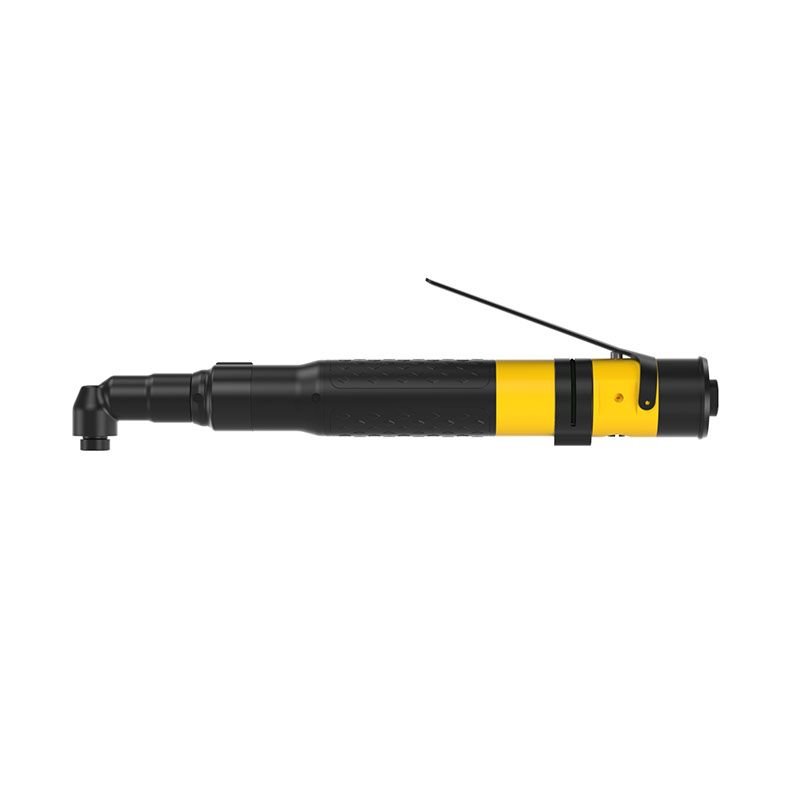

LTV19 R15-42
Product Description
The Angle Screwdriver LTV is the smallest pneumatic angle screwdriver in our range that can reach in to all those cramped spaces where you can not fit a pistol grip. The tool features a spiral cut angle gear offering increased durability and accuracy due to less play. You can easily set the reverse by twisting the ring situated at the back end of the tool, just under the start lever. All LTV screwdriver models are equipped with a spring-operated shut-off clutch, designed by Atlas Copco that is set with a Philips screwdriver – simple, fast and reliable!
Technical Specifications
Specification
| Specification | Value |
| Air inlet thread | 1/4 in |
| Angle head centre to side | 11 mm |
| Angle head height | 36 mm |
| Length | 309 mm |
| Outgoing spindle | 1/4 in |
| Recommended hose size | 8 mm |
| Weight | 2.4 lb |
| Sound pressure | 78 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Torque range max | 11.06 ft-lb |
| Torque range min | 4.42 ft-lb |
| Torque range soft joint max | 11.06 in-lb |
| Torque range soft joint min | 4.42 in-lb |
| Free speed | 400 r/min |
| Air consumption at free speed | 15 cfm |
| Max working pressure | 100 psi |
| Model type | Angle |
| SCIP | 512325c7-97f9-4ab7-9ad4-7c27c003eb75 |
| Shut-off | Yes |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (MD) |
| EU Standard | ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-6:2012 |
