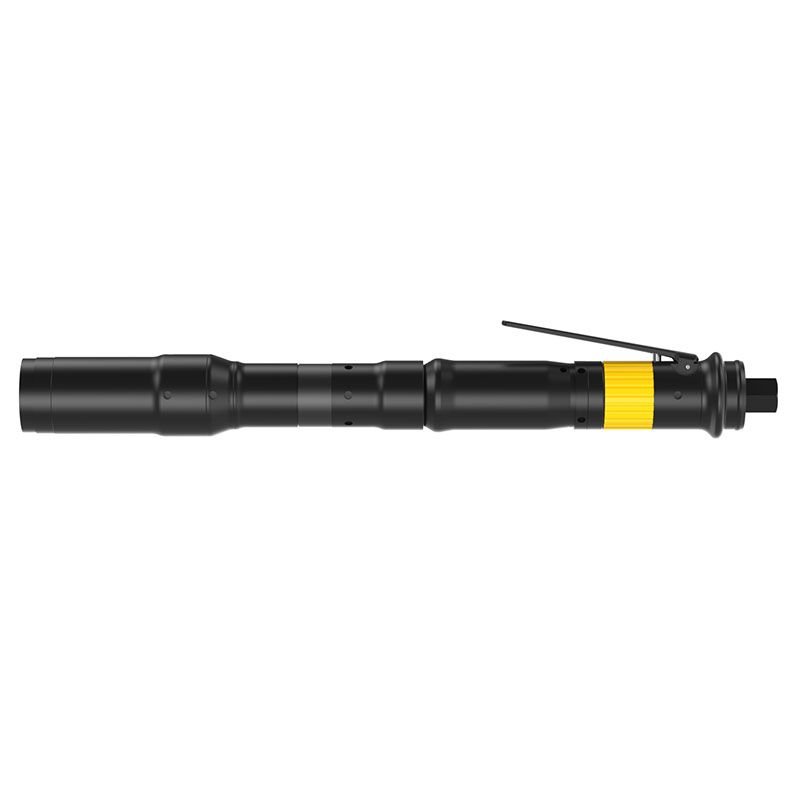

LTD38 R34-ATEX
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Specification | Value |
| ATEX code | EX II 3 GD IIB 135°C (T4) |
| ATEX | Yes |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC, 2014/34/EU |
| EU Standard | EN 80079-36:2016, ISO 11148-6 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN 80079-36:2016 |
| Sound power | 93 dB(A) |
| Sound pressure | 82 dB(A) |
| Sound standard | ISO15744 |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Max torque at 6.3 bar | 33 ft-lb |
| Min torque at 6.3 bar soft joint | 9 ft-lb |
| Torque range max | 33 ft-lb |
| Torque range min | 8 ft-lb |
| Air inlet thread | 1/4 in |
| Bolt size | M8 mm |
| Length | 513 mm |
| Recommended hose size | 13 mm |
| Weight | 5.1 lb |
| Free speed | 280 r/min |
| Model type | Straight |
| Reversible | Yes |
| SCIP | 261b9caa-1fca-4e49-a582-9915b8a5c12d |
| Shut-off | Yes |
| Air consumption at free speed | 34 cfm |
| Max working pressure | 100 psi |
