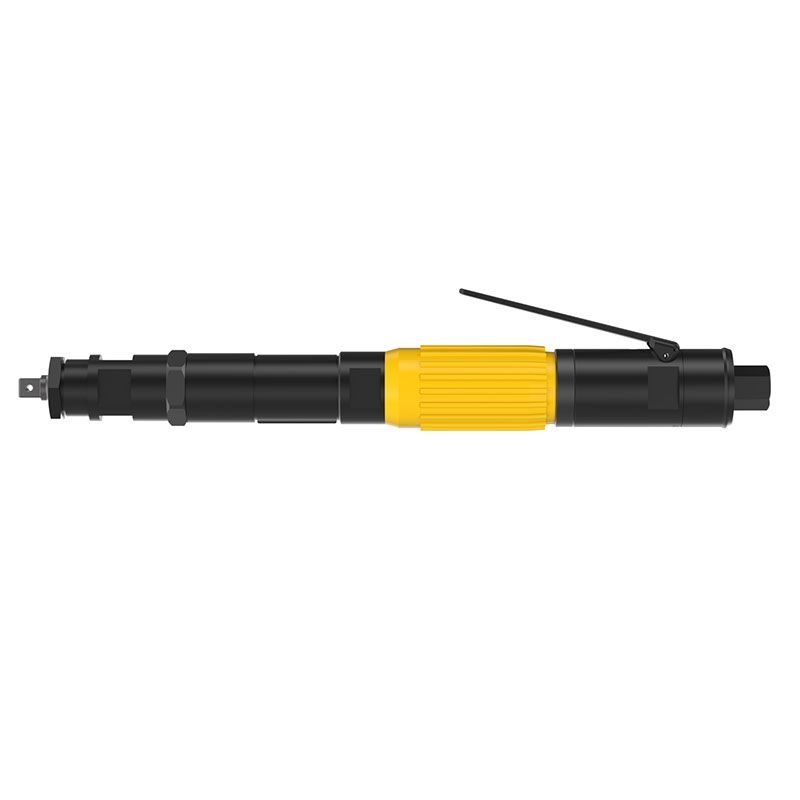

LTD28 R8-RE
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Specification | Value |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | ISO 11148-6 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-6 |
| Sound pressure | 76 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Torque range max | 6 ft-lb |
| Torque range min | 2 ft-lb |
| Air inlet thread | 1/4 in |
| Bolt size | M6 mm |
| CS distance | 20 mm |
| Length | 363 mm |
| Output size | 3/8" |
| Recommended hose size | 10 mm |
| Square drive | 3/8 in |
| Weight | 2.6 lb |
| Free speed | 1100 r/min |
| Model type | Straight |
| Output type | Square, Male |
| Reversible | Yes |
| SCIP | 261b9caa-1fca-4e49-a582-9915b8a5c12d |
| Shut-off | Yes |
| Air consumption at free speed | 17 cfm |
| Max working pressure | 100 psi |
