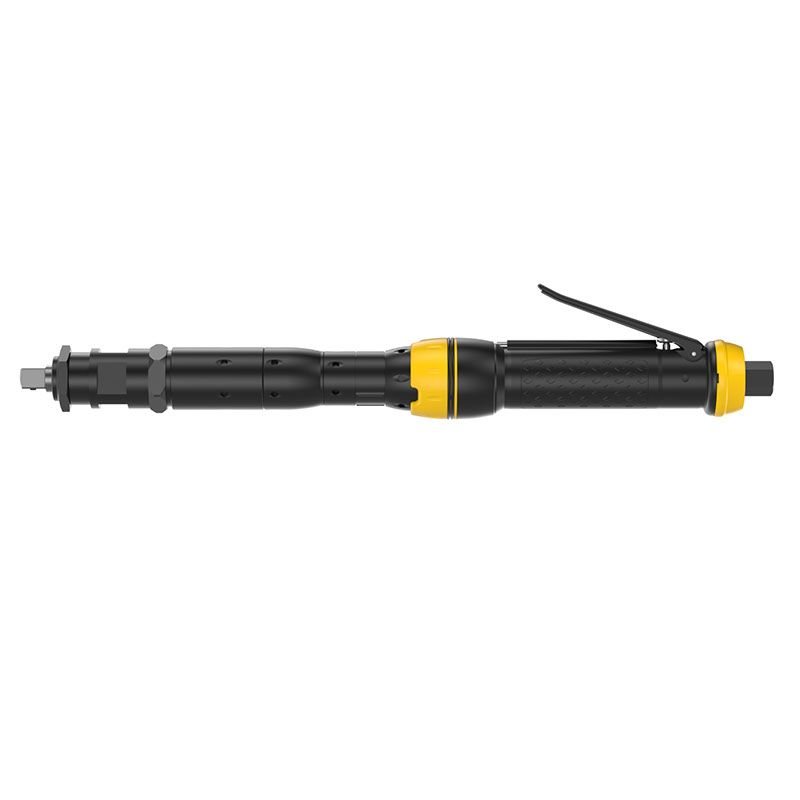

LTD39-2 R45-13
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Specification | Value |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN ISO 11148-6:2012 |
| Sound power | 92 dB(A) |
| Sound pressure | 81 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Max torque at 6.3 bar | 33 ft-lb |
| Min torque at 6.3 bar soft joint | 16 ft-lb |
| Torque range max | 33 ft-lb |
| Torque range min | 16 ft-lb |
| Air inlet thread | 1/4 in |
| Bolt size | M8 mm |
| CS distance | 20 mm |
| Length | 450 mm |
| Output size | 1/2" |
| Recommended hose size | 10 mm |
| Square drive | 1/2 in |
| Weight | 2.2 kg |
| Free speed | 520 r/min |
| Model type | Straight |
| Output type | Square, Male |
| Reversible | Yes |
| SCIP | 261b9caa-1fca-4e49-a582-9915b8a5c12d |
| Shut-off | Yes |
| Spline/Wave type | 2 |
| Air consumption at free speed | 34 cfm |
| Max working pressure | 100 psi |
