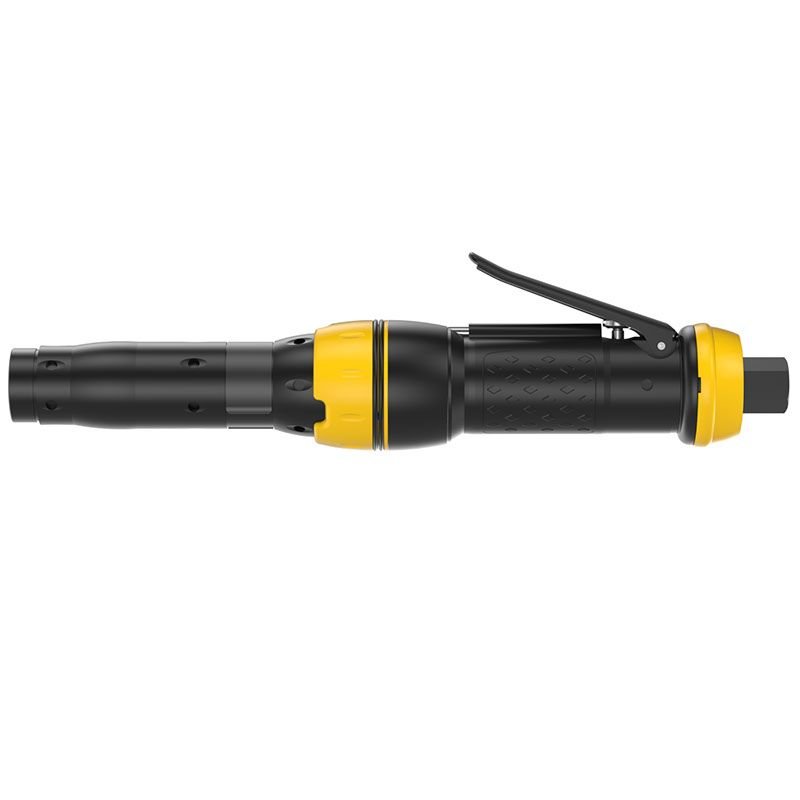

LTD29 R14-ATEX
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Specification | Value |
| ATEX code | EX II 3 GD IIB 135°C (T4) |
| ATEX | Yes |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | EN 80079-36:2016 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | EN 80079-36:2016 |
| Sound power | 91 dB(A) |
| Sound pressure | 80 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Max torque at 6.3 bar | 10 ft-lb |
| Min torque at 6.3 bar soft joint | 5 ft-lb |
| Torque range max | 10 ft-lb |
| Torque range min | 5 ft-lb |
| Air inlet thread | 1/4 in |
| Bolt size | M6 mm |
| Length | 284 mm |
| Output size | 3/8" |
| Recommended hose size | 10 mm |
| Weight | 1.5 kg |
| Free speed | 900 r/min |
| Model type | Straight |
| Output type | Square, Male |
| Reversible | Yes |
| Rotation direction | Reversible |
| SCIP | 261b9caa-1fca-4e49-a582-9915b8a5c12d |
| Shut-off | Yes |
| Air consumption at free speed | 21 cfm |
| Max working pressure | 100 psi |
