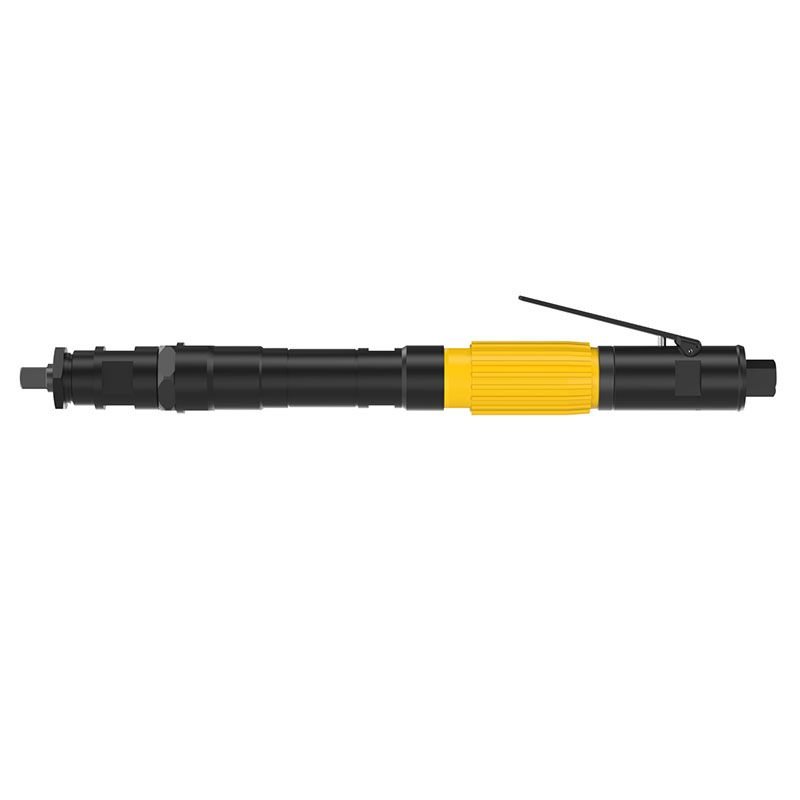

LTD38 R38-RE
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Category | Specification |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | ISO 11148-6 |
| Noise & Vibrations | |
| Sound Power | 93 dB(A) |
| Sound Pressure | 82 dB(A) |
| Torque | |
| Torque Range | 14-28 ft-lb (19-38 Nm) |
| Dimensions & Weight | |
| Air Inlet | 1/4" NPT |
| Fastener Size | M10 |
| CS Distance | 20 mm (0.79") |
| Length | 441 mm (17.36") |
| Drive Size | 1/2" Square |
| Weight | 4.6 lb (2.1 kg) |
| Speed | |
| Free Speed | 480 RPM |
| Design Features | |
| Model Type | Straight |
| Output Type | Square (Male) |
| Reversible | Yes |
| SCIP Number | 261b9caa-1fca... |
| Shut-off Feature | Yes |
| Air System | |
| Air Consumption | 34 CFM (16 l/s) |
| Max Working Pressure | 100 psi (6.9 bar) |
