ATLAS COPCO
Click to zoom • Drag to pan

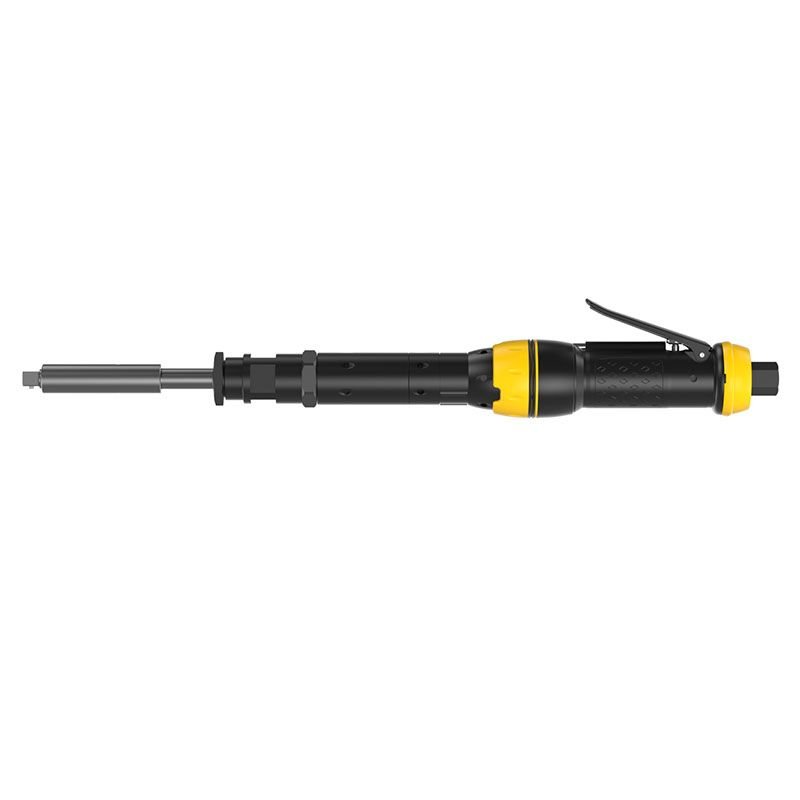

LTD29-2 R22F-10
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Category | Specification |
| Certifications | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| Standards Compliance | EN ISO 11148-6:2012 |
| Noise & Vibrations | |
| Sound Power | 91 dB(A) |
| Sound Pressure | 80 dB(A) |
| Vibration Level | <2.5 m/s² |
| Torque | |
| Max Torque (6.3 bar) | 16 ft-lb (22 Nm) |
| Min Torque (Soft Joint) | 8 ft-lb (11 Nm) |
| Torque Range | 7-16 ft-lb (9-22 Nm) |
| Dimensions & Weight | |
| Air Inlet | 1/4" NPT |
| Fastener Size | M6 |
| CS Distance | 19 mm (0.75") |
| Length | 466 mm (18.35") |
| Drive Size | 3/8" Square |
| Weight | 4.4 lb (2 kg) |
| Speed | |
| Free Speed | 750 RPM |
| Design Features | |
| Model Type | Straight |
| Output Type | Square (Male) |
| Reversible | Yes |
| SCIP Number | 261b9caa-1fca... |
| Shut-off Feature | Yes |
| Air System | |
| Air Consumption | 21 CFM (10 l/s) |
| Max Working Pressure | 100 psi (6.9 bar) |
