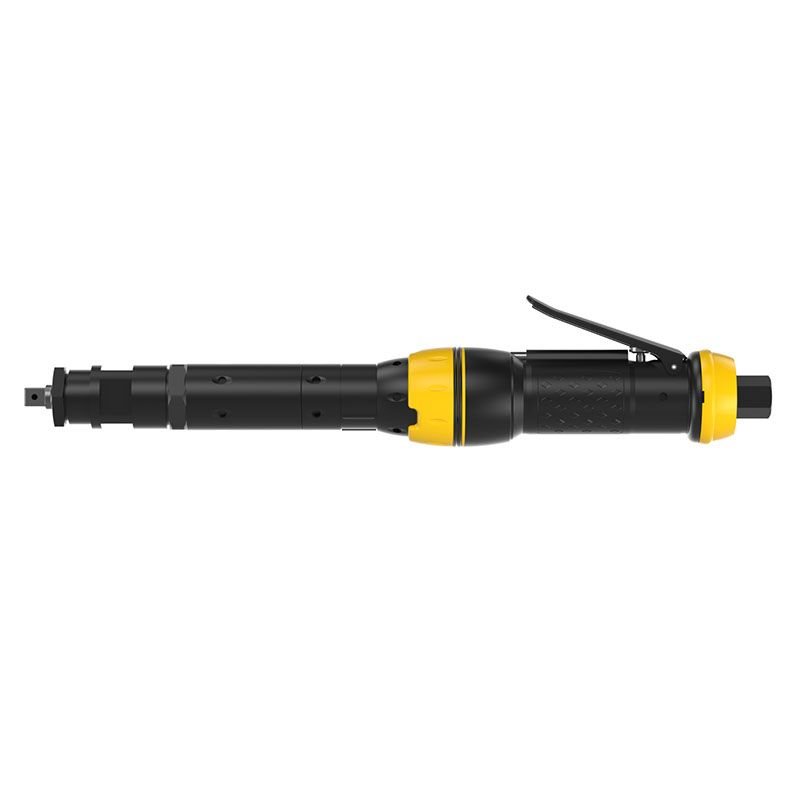

LTD29-2 R22-10
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Category | Imperial (Metric) |
| Certifications | |
| EAC Certified | Yes |
| EU Compliance | 2006/42/EC |
| Standards | EN ISO 11148-6:2012 |
| Performance | |
| Torque Range | 7-16 ft-lb (9-22 Nm) |
| Max Torque @ 6.3 bar | 16 ft-lb (22 Nm) |
| Min Torque (Soft Joint) | 8 ft-lb (11 Nm) |
| Free Speed | 750 RPM |
| Physical Dimensions | |
| Length | 14.2" (360 mm) |
| Weight | 3.5 lb (1.6 kg) |
| CS Distance | 0.75" (19 mm) |
| Drive Size | 3/8" Square |
| Air System | |
| Air Consumption | 21 CFM (10 l/s) |
| Max Pressure | 100 psi (6.9 bar) |
| Inlet Thread | 1/4" NPT |
| Recommended Hose | 3/8" (10 mm) |
| Operational Data | |
| Fastener Size | M6 |
| Sound Pressure | 80 dB(A) |
| Vibration | <2.5 m/s² |
| Design Features | |
| Model Type | Straight |
| Output | Square, Male |
| Reversible | Yes |
| Shut-off | Yes |
| SCIP Number | 261b9caa-1fca-4e49-a582-9915b8a5c12d |
