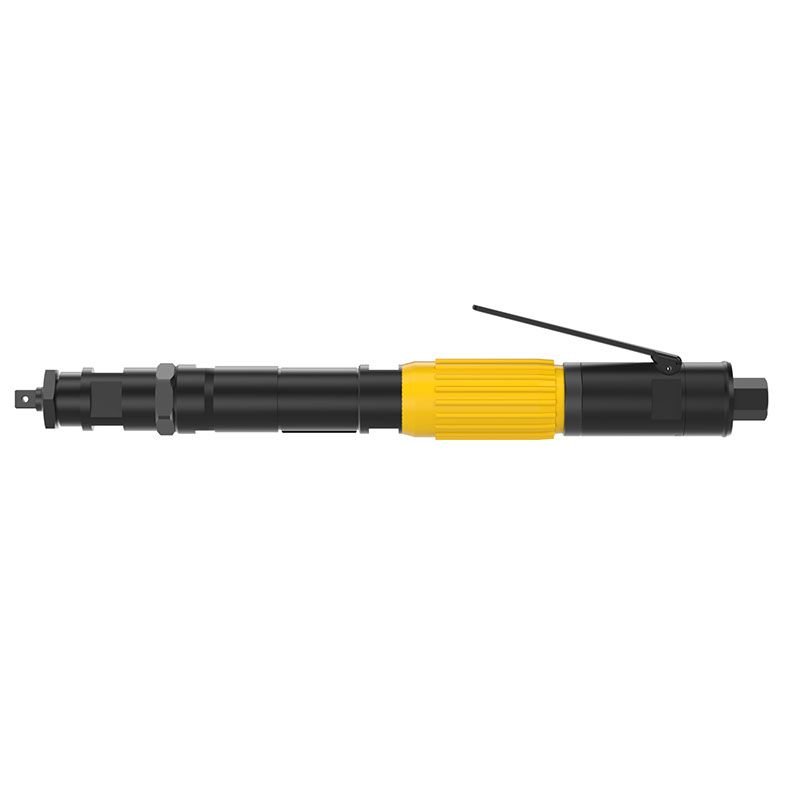

LTD28 R22-RE
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Parameter | Specification |
| Dimensions & Weight | |
| Length | 15.1" (383 mm) |
| Weight | 2.9 lb (1.3 kg) |
| Air Inlet | 1/4" NPT |
| Square Drive | 3/8" |
| CS Distance | 0.79" (20 mm) |
| Performance | |
| Torque Range | 7-16 ft-lb (9-22 Nm) |
| Free Speed | 125 RPM |
| Air System | |
| Air Consumption | 17 CFM (8 l/s) |
| Max Pressure | 100 psi (6.9 bar) |
| Fastener Info | |
| Bolt Size | M8 |
| Noise Levels | |
| Sound Pressure | 76 dB(A) |
| Design Features | |
| Model Type | Straight |
| Output | Square, Male |
| Reversible | Yes |
| Shut-off | Yes |
| Certifications | |
| EAC Certified | Yes |
| Standards Compliance | ISO 11148-6 |
