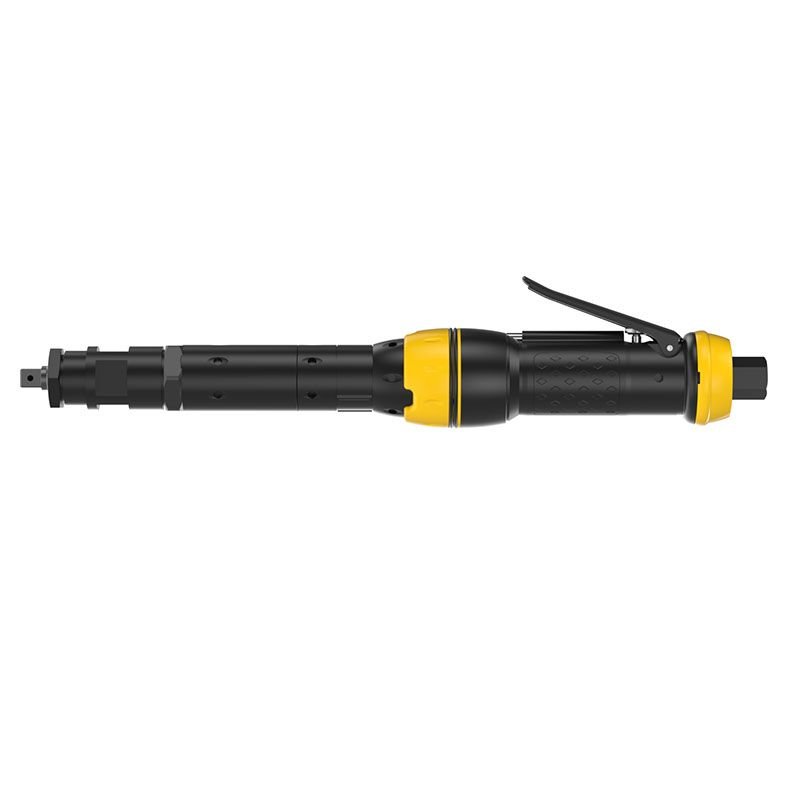

LTD29-2 R18-10
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Category | Imperial (Metric) |
| Certifications | |
| • EAC Certified | Yes |
| • EU Compliance | 2006/42/EC |
| • Standards | EN ISO 11148-6:2012 |
| Torque Performance | |
| • Torque Range | 7-13 ft-lb (9-18 Nm) |
| • Max Torque @ 6.3 bar | 14 ft-lb (19 Nm) |
| • Min Torque (Soft Joint) | 7 ft-lb (9 Nm) |
| Physical Dimensions | |
| • Length | 14.2" (360 mm) |
| • Weight | 3.5 lb (1.6 kg) |
| • CS Distance | 0.75" (19 mm) |
| • Drive Size | 3/8" Square |
| Air System | |
| • Air Consumption | 21 CFM (10 l/s) |
| • Max Pressure | 100 psi (6.9 bar) |
| • Inlet Thread | 1/4" NPT |
| Performance | |
| • Free Speed | 900 RPM |
| • Fastener Size | M6 |
| • Spline/Wave Type | 1 |
| Noise & Vibration | |
| • Sound Power | 91 dB(A) |
| • Sound Pressure | 80 dB(A) |
| • Vibration | <2.5 m/s² |
| Design Features | |
| • Model Type | Straight |
| • Output | Square, Male |
| • Reversible | Yes |
| • Shut-off | Yes |
