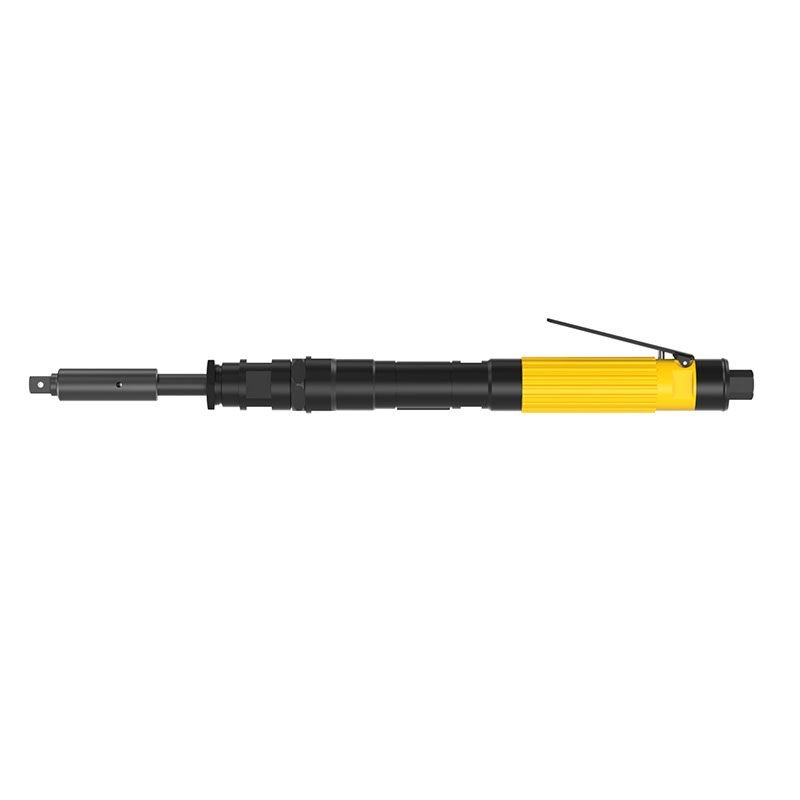

LTD38 N30F-RE
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Category | Imperial (Metric) |
| Certifications | • EAC Certified: Yes |
| • EU Compliance: 2006/42/EC | |
| • Standards: ISO 11148-6 | |
| Performance | • Torque Range: 10-22 ft-lb (14-30 Nm) |
| • Free Speed: 820 RPM | |
| • Fastener Size: M8 | |
| Dimensions | • Length: 20.5" (521 mm) |
| • Weight: 5 lb (2.27 kg) | |
| • CS Distance: 0.79" (20 mm) | |
| • Drive Size: 1/2" Square | |
| Air System | • Air Consumption: 42 CFM (20 l/s) |
| • Max Pressure: 100 psi (6.9 bar) | |
| • Inlet: 1/4" NPT | |
| Noise/Vibration | • Sound Pressure: 79 dB(A) |
| Design Features | • Model: Straight |
| • Output: Square, Male | |
| • Shut-off: Yes | |
| • Reversible: No |
