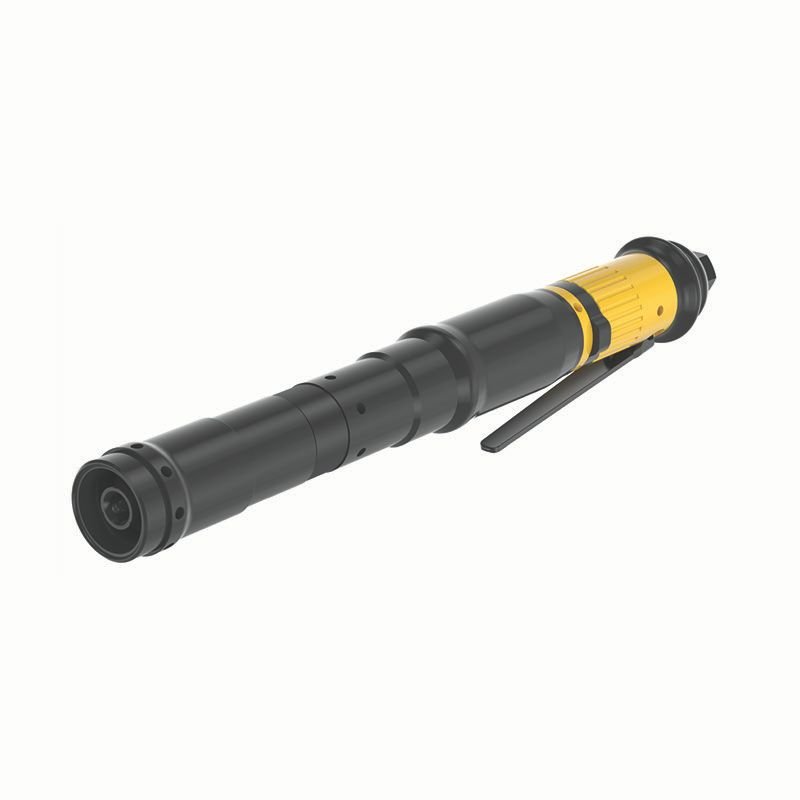

LTD38 R47-RR
Product Description
The Straight Nutrunner LTD utilizes the same clutch from the LTV angle nutrunners. With fast run-down and accurate final tightening, they offer high productivity and unmatched torque accuracy as well as joint independence. The LTD straight nutrunners have a splined reaction bar connection which can also be used for fixed assembly of the nutrunner.
Technical Specifications
Specification
| Category | Specification |
| Certifications | • EAC Certified: Yes |
| • EU Compliance: 2006/42/EC | |
| • Standards: ISO 11148-6 | |
| Performance | • Torque Range: 16-35 ft-lb (22-47 Nm) |
| • Free Speed: 380 RPM | |
| Dimensions | • Length: 17.6" (448 mm) |
| • Weight: 5.1 lb (2.3 kg) | |
| • CS Distance: 0.83" (21 mm) | |
| Drive System | • Square Drive: 1/2" |
| • Output: Male Square | |
| Air System | • Air Consumption: 34 CFM (16 l/s) |
| • Max Pressure: 100 psi (6.9 bar) | |
| • Hose Size: 10/16 mm (3/8"/5/8") | |
| Operational Data | • Fastener Size: M10 |
| • Sound Pressure: 77 dB(A) | |
| Features | • Model: Straight |
| • Reversible: Yes | |
| • Shut-off: Yes |
