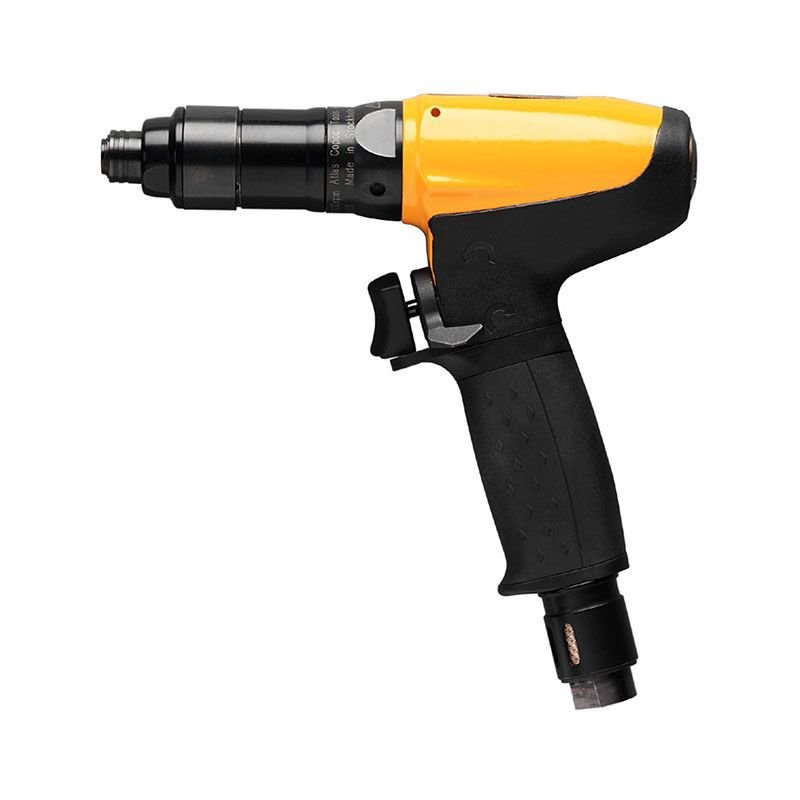

LUM22 HRX2
Product Description
Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up. The LUM Pistol Grip Screwdriver combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. Suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. The LUM pistol grip range comes in several different configurations.
Technical Specifications
Specification
| Specification | Details |
| Certifications, Standards & Directives | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | ISO 11148-6 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-6 |
| Speed | |
| Free Speed | 4500 r/min |
| Design & Functions | |
| Model Type | Pistol balanced |
| Output Type | Hexagon, Female |
| SCIP | d1196d17-abfb-41fd-8563-7e39f8d98348 |
| Shut-off | Shut-off |
| Start Trigger | Trigger lever |
| Air Information | |
| Air Consumption at Free Speed | 19 cfm |
| Max Working Pressure | 100 psi |
| Noise & Vibrations | |
| Sound Pressure | 78 dB(A) |
| Sound Standard | ISO15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Standard | ISO28927-2 |
| Vibration Value | <2.5 m/s² |
| Dimension & Weight | |
| Air Inlet Thread | 1/4 in |
| CS Distance | 18 mm |
| Length | 187 mm |
| Output Size | 1/4" |
| Recommended Hose Size | 8 mm |
| Weight | 2 lb |
| Torque | |
| Torque Range Max | 1.48 ft-lb |
| Torque Range Min | 0.89 ft-lb |
| Torque Range Soft Joint Max | 17.7 in-lb |
| Torque Range Soft Joint Min | 10.6 in-lb |
