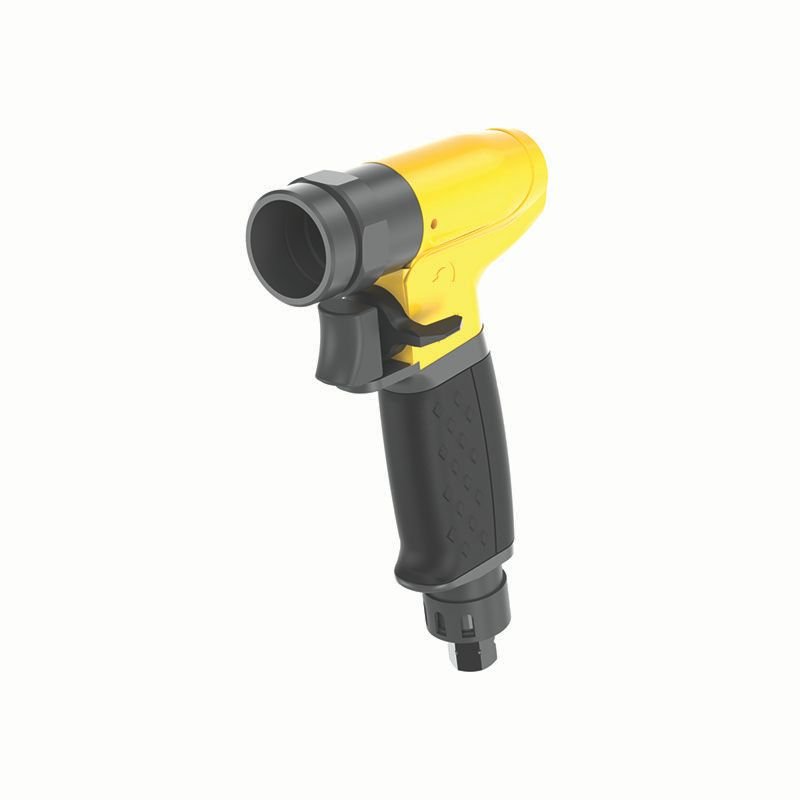

LUD12 HRX2-M
Product Description
The Pistol Direct Drive Screwdriver LUD are suitable for applications with self-drilling and wood screws. The LUD are direct drive screwdrivers that stall when final torque is reached. The torque level is adjusted by regulating the air pressure. Key internal components are manufactured in our own plant in Sweden so we can be certain each tool is up to our quality standard.
Technical Specifications
Specification
| Specification | Value |
| Certifications, Standards & Directives | |
| EAC certified | Yes |
| EU Legislation | 2006/42/EC (Annex I, clauses 1.1, 1.6, 1.7, 2.2.1) |
| EU Standard | EN ISO 11148-6:2012 |
| UK Regulations | S.I. 2008/1597 (Annex I, clauses 1.1, 1.6, 1.7, 2.2.1) |
| UK Standard | BS EN ISO 11148-6:2012 |
| Speed | |
| Free speed | 1600 r/min |
| Design & Functions | |
| Function | Direct drive |
| Model type | Pistol |
| Output type | Special design |
| SCIP | 47e16caf-a521-4999-9f5a-5ea995d62d14 |
| Shut-off | Direct drive |
| Start trigger | Trigger lever |
| Air Information | |
| Air consumption at free speed | 15 cfm |
| Max working pressure | 100 psi |
| Noise & Vibrations | |
| Sound pressure | 74 dB(A) |
| Sound standard | ISO15744 |
| Sound uncertainty | 3 dB(A) |
| Vibration standard | ISO28927-2 |
| Vibration value | <2.5 m/s² |
| Dimension & Weight | |
| Air inlet thread | NPT 1/8" in |
| CS distance | 18 mm |
| Length | 115 mm |
| Output size | Special design |
| Recommended hose size | 8 mm |
| Weight | 1.1 lb |
| Torque | |
| Torque range max | 1.84 ft-lb |
| Torque range min | 0.74 ft-lb |
| Torque range soft joint max | 22.1 in-lb |
| Torque range soft joint min | 8.8 in-lb |
