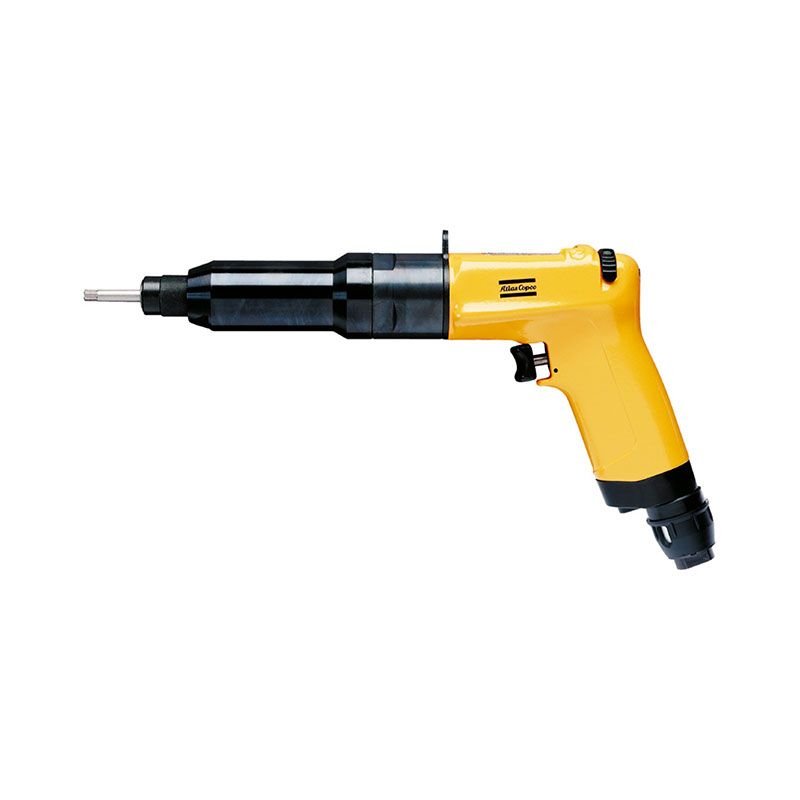

LUF34 HR16
Product Description
Pistol Twist Slip-clutch Screwdriver, pistol models are equipped with a spring-operated slip clutch that applies a pulsating force when the torque level is reached. These tools are suitable where the torque level may temporarily rise during the rundown phase, for instance when using sheet metal screws, wood screws or self-tapping screws.
Technical Specifications
Specification
| Specification | Details |
| Certifications, Standards & Directives | |
| EAC Certified | Yes |
| EU Legislation | 2006/42/EC |
| EU Standard | ISO 11148-6 |
| UK Regulations | S.I. 2008/1597 |
| UK Standard | ISO 11148-6 |
| Speed | |
| Free Speed | 1600 r/min |
| Design & Functions | |
| Function | Slip-clutch |
| Model Type | Pistol |
| SCIP | eee52b25-0b0a-4f43-a8b8-d7af02c4d31d |
| Air Information | |
| Air Consumption at Free Speed | 19 cfm |
| Max Working Pressure | 100 psi |
| Noise & Vibrations | |
| Sound Power | 92 dB(A) |
| Sound Pressure | 81 dB(A) |
| Sound Standard | ISO15744 |
| Sound Uncertainty | 3 dB(A) |
| Vibration Standard | ISO28927-2 |
| Vibration Value | <2.5 m/s² |
| Dimension & Weight | |
| Air Inlet Thread | 1/4 in |
| CS Distance | 21 mm |
| Length | 265 mm |
| Recommended Hose Size | 8 mm |
| Weight | 3.1 lb |
| Torque | |
| Torque Range Max | 8.85 ft-lb |
| Torque Range Min | 2.21 ft-lb |
| Torque Range Soft Joint Max | 107 in-lb |
| Torque Range Soft Joint Min | 27 in-lb |
