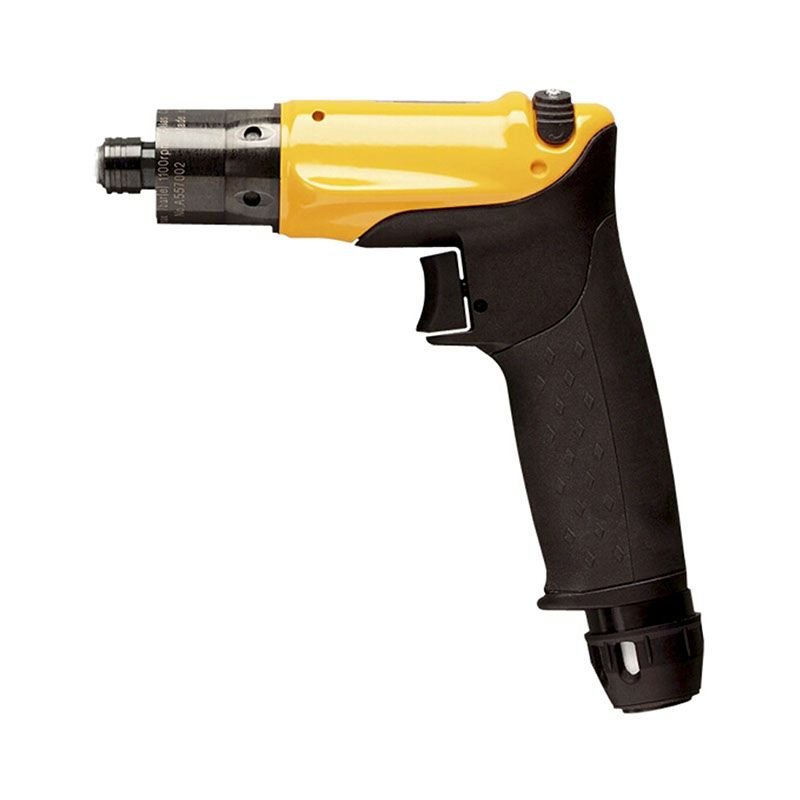

LUD22 HR5
Product Description
The Straight Direct Drive Screwdriver LUD is suitable for applications with self-drilling and wood screws. The LUDs are direct drive screwdrivers that stall when final torque is reached. The torque level is adjusted by regulating the air pressure.
Technical Specifications
Specifcation
| Category | Specification |
| Certifications | EAC Certified: Yes EU Legislation: 2006/42/EC UK Regulations: S.I. 2008/1597 |
| Standards | EU/UK Standard: ISO 11148-6 Sound Standard: ISO 15744 Vibration Standard: ISO 28927-2 |
| Performance | Free Speed: 1650 rpm Torque Range: 2.07-4.06 ft-lb (24.8-48.7 in-lb) |
| Design | Type: Pistol Grip Drive: Direct Drive Output: Female Hexagon 1/4" Trigger: Lever Start |
| Air System | Consumption: 17 CFM Max Pressure: 100 psi Inlet: 1/4" Hose: 8mm |
| Dimensions | Length: 125mm (4.92") CS Distance: 18mm Weight: 1.4 lb (0.64kg) |
| Noise/Vibration | Sound Pressure: 76 dB(A) ±3dB Vibration: <2.5 m/s² |
| Identification | SCIP: 47e16caf-a521-4999-9f5a-5ea995d62d14 |
