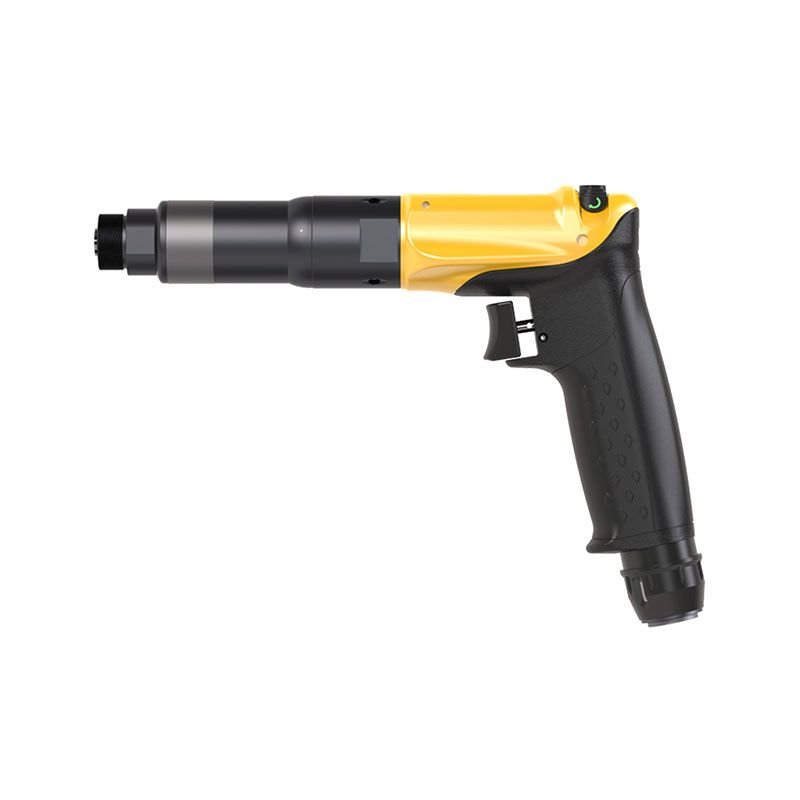

LUM22 HR14-M24
Product Description
Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up. The LUM Pistol Grip Screwdriver combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. Suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. The LUM pistol grip range comes in several different configurations.
Technical Specifications
Specification
| Category | Specification |
| Certifications | EAC Certified: Yes |
| EU Compliance | 2006/42/EC (Annex I, clauses 1.1, 1.6, 1.7, 2.2.1) |
| UK Compliance | S.I. 2008/1597 (Annex I, clauses 1.1, 1.6, 1.7, 2.2.1) |
| Applicable Standards | ISO 11148-6 (EU/UK) ISO 15744 (Sound) ISO 28927-2 (Vibration) |
| Performance | Free Speed: 370 rpm Torque Range: 3.69-10.69 ft-lb (44-128 in-lb) |
| Design | Model: LUM22 HR14-M24 Output: Special Design Trigger: Lever Start Shut-off: Automatic |
| Air System | Consumption: 16 CFM Max Pressure: 90 psi Inlet: 1/4" NPT Hose: 10mm |
| Dimensions | Length: 209mm (8.23") CS Distance: 18mm Weight: 2.2 lb (1kg) |
| Noise/Vibration | Sound: 78 dB(A) ±3dB Vibration: <2.5 m/s² |
| Identification | SCIP: d1196d17-abfb-41fd-8563-7e39f8d98348 |
