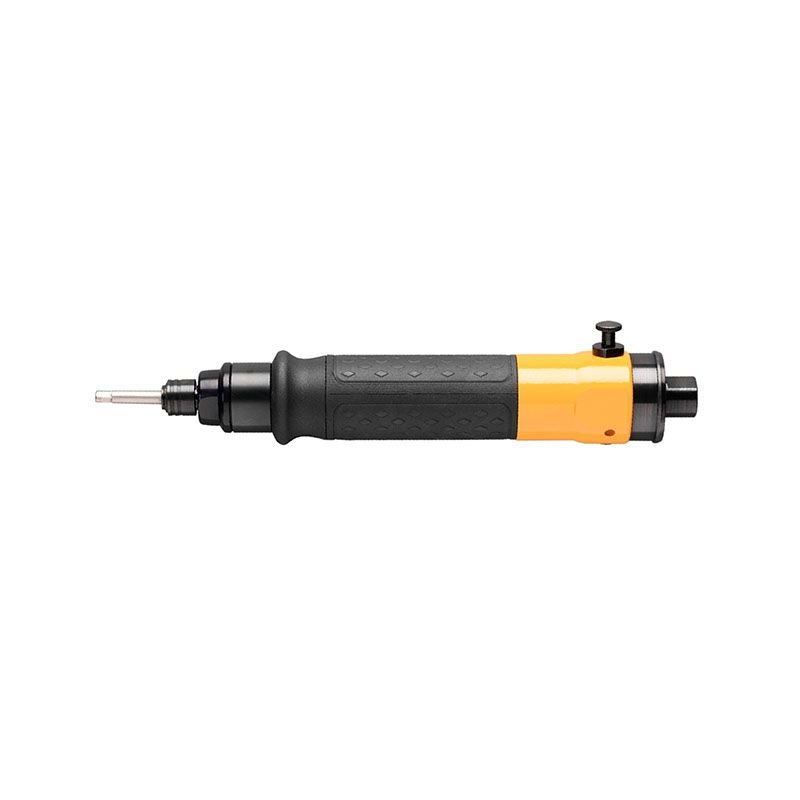

LUM22 PR3
Product Description
Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up. The LUM Pistol Grip Screwdriver combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. Suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. The LUM pistol grip range comes in several different configurations.
Technical Specifications
Specification
| Category | Specification |
| Dimensions & Weight | Length: 211mm (8.31") CS Distance: 20mm (0.79") Weight: 1.7 lb (0.77 kg) Air Inlet: 1/4" NPT Output: Female Hexagon 1/4" Hose: 8mm |
| Design & Functions | Model: Straight Output: Female Hexagon Start: Push Button Shut-off: Automatic SCIP: d1196d17-abfb-41fd-8563-7e39f8d98348 |
| Performance | Free Speed: 2100 rpm Torque Range: 0.44-2.36 ft-lb (5.3-28.3 in-lb) Air Consumption: 15 CFM @ 100 psig |
| Certifications | EAC Certified: Yes EU: 2006/42/EC (MD) UK: S.I. 2008/1597 Standards: ISO 11148-6 |
| Noise & Vibration | Sound: 75 dB(A) ±3dB (ISO 15744) Vibration: <2.5 m/s² (ISO 28927-2) |
