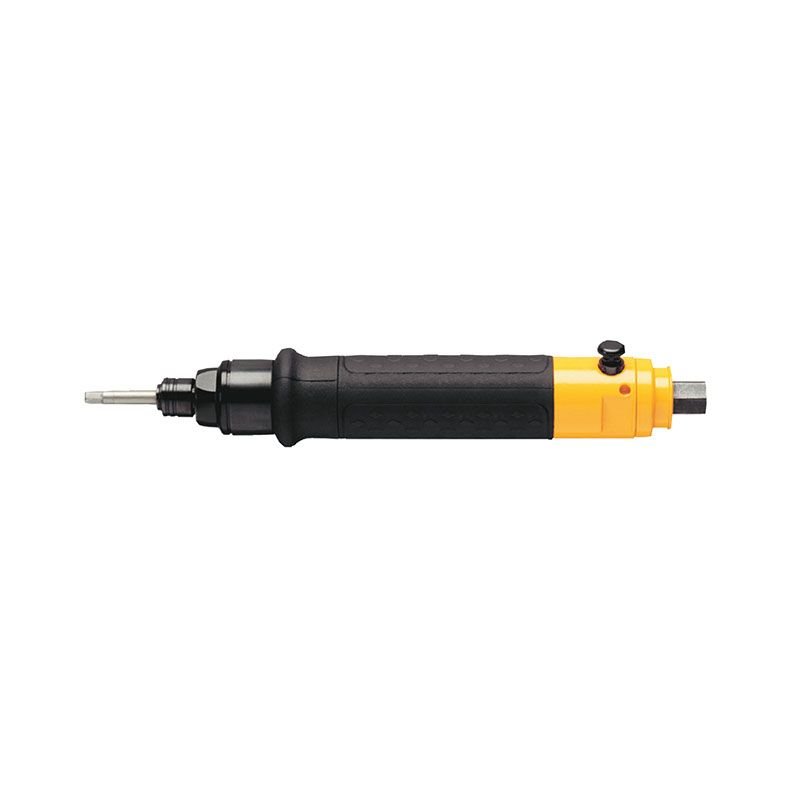

LUM12 PR2
Product Description
The LUM series is the workhorse of our pneumatic screwdriver line-up. Designed to be comfortable to work with all day and to be durable in a tough production environment, they combine the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. All LUM models are equipped with a spring-operated shut-off clutch, designed by Atlas Copco that is set with a Philips screwdriver – simple, fast and reliable!
Technical Specifications
Specification
| Category | Specification |
| Certifications | • EAC Certified: Yes • EU Compliance: 2006/42/EC (MD) • Standards: ISO 11148-6 |
| Performance | • Torque Range: 0.3-1.7 ft-lb (3.5-20.4 in-lb) • Free Speed: 1450 RPM |
| Dimensions & Weight | • Length: 195 mm (7.68") • Weight: 1.2 lb (0.54 kg) • CS Distance: 17 mm (0.67") • Output Size: 1/4" |
| Drive System | • Hexagon Drive: 1/4" • Output: Female Hexagon |
| Air System | • Air Consumption: 10 CFM • Max Pressure: 100 psig (6.9 bar) • Hose Size: 6 mm (1/4") • Air Inlet: 1/8" NPT |
| Operational Data | • Sound Pressure: 75 dB(A) ±3dB • Vibration: <2.5 m/s² |
| Features | • Model: Straight • Start: Push Button • Shut-off: Automatic • SCIP: d1196d17-abfb-41fd-8563-7e39f8d98348 |
