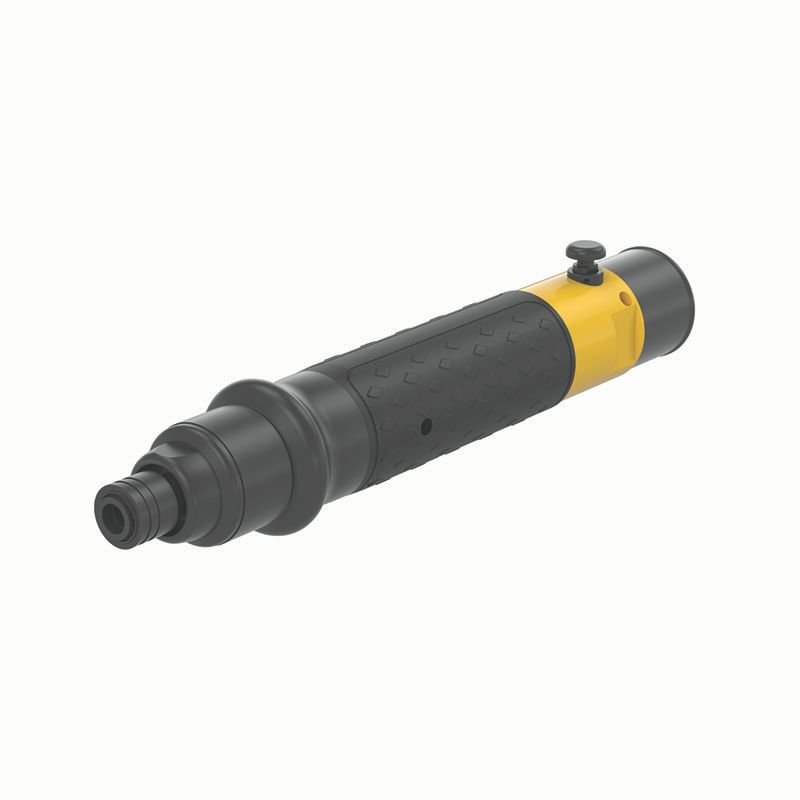

LUM12 PR5
Product Description
The LUM series is the workhorse of our pneumatic screwdriver line-up. Designed to be comfortable to work with all day and to be durable in a tough production environment, they combine the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. All LUM models are equipped with a spring-operated shut-off clutch, designed by Atlas Copco that is set with a Philips screwdriver – simple, fast and reliable!
Technical Specifications
Specification
| Category | Specification |
| Dimensions & Weight | • Length: 195mm (7.68") • CS Distance: 20mm (0.79") • Weight: 1.2 lb (0.54 kg) • Air Inlet: 1/8" NPT • Output: 1/4" Female Hex • Hose: 6mm |
| Design & Functions | • Model: Straight • Start: Push Button • Shut-off: Automatic • SCIP: d1196d17-abfb... |
| Performance | • Free Speed: 450 rpm • Torque: 0.3-3.69 ft-lb (3.5-44.2 in-lb) |
| Air System | • Consumption: 10 CFM • Max Pressure: 100 psig |
| Certifications | • EAC: Yes • EU: 2006/42/EC (MD) • UK: S.I. 2008/1597 • Standards: ISO 11148-6 |
| Noise/Vibration | • Sound: 75 dB(A) ±3dB • Vibration: <2.5 m/s² |
