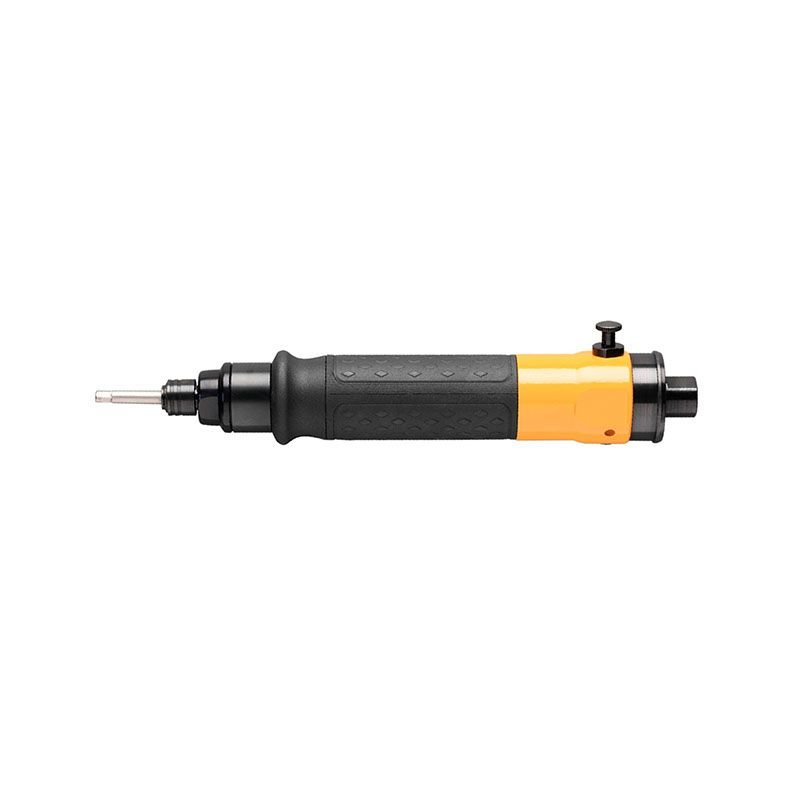

LUM22 PR5-350
Product Description
Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up. The LUM Pistol Grip Screwdriver combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. Suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. The LUM pistol grip range comes in several different configurations.
Technical Specifications
Specification
| Category | Specification |
| Dimensions & Weight | • Length: 211mm (8.31") • CS Distance: 20mm (0.79") • Weight: 1.7 lb (0.77kg) • Air Inlet: 1/4" NPT • Output: 1/4" Female Hex • Hose: 8mm |
| Performance | • Free Speed: 350 rpm • Torque Range: 0.3-3.69 ft-lb (3.5-44.2 in-lb) |
| Air System | • Consumption: 15 CFM • Max Pressure: 100 psig (6.9 bar) |
| Design Features | • Model: Straight • Start: Push Button • Shut-off: Automatic • SCIP: d1196d17-abfb... |
| Certifications | • EAC: Yes • EU: 2006/42/EC (MD) • UK: S.I. 2008/1597 • Standards: ISO 11148-6 |
| Noise/Vibration | • Sound: 75 dB(A) ±3dB • Vibration: <2.5 m/s² |
