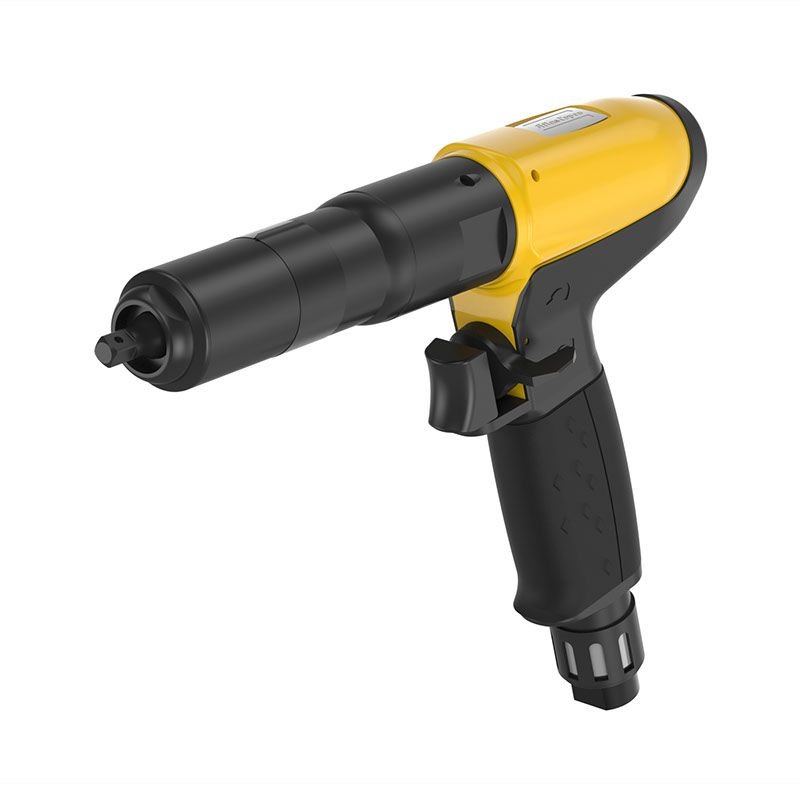

Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up

Katalog
Ringkasan

Kenapa LUM22 HRX26-130

Atlas Copco Pistol Shut-off Screwdriver LUM is the workhorse of our pneumatic screwdriver line-up. The LUM Pistol Grip Screwdriver combines the best engineering, continuously refined and improved, to bring you superior ergonomics, durability and productivity. Suitable for joints with demands on torque accuracy, providing accurate tightening time-after-time, independent of variations in joint stiffness. The LUM pistol grip range comes in several different configurations.

Katalog LUM22 HRX26-130PDF resmi dari ATLAS COPCO Butuh saran atau harga?Tim penjualan kami membalas dalam 1 hari kerja

Spesifikasi Teknis

Specification

SpecificationValue
EAC certifiedYes
EU Legislation2006/42/EC
EU StandardISO 11148-6
UK RegulationsS.I. 2008/1597
UK StandardISO 11148-6
Free speed130 r/min
Model typePistol balanced
Output typeSquare, Male
SCIPd1196d17-abfb-41fd-8563-7e39f8d98348
Shut-offShut-off
Start triggerTrigger lever
Air consumption at free speed19 cfm
Max working pressure100 psi
Sound pressure78 dB(A)
Sound standardISO15744
Sound uncertainty3 dB(A)
Vibration standardISO28927-2
Vibration value<2.5 m/s²
Air inlet thread1/4 in
CS distance18 mm
Length233 mm
Output sizeSpecial design
Recommended hose size10 mm
Weight2.6 lb
Torque range max19.18 ft-lb
Torque range min2.21 ft-lb
Torque range soft joint max230 in-lb
Torque range soft joint min26.6 in-lb
