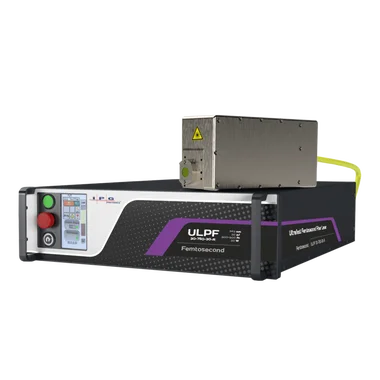

ULPF/ULPP-R Series
Product Description
ULPF and ULPP green ultrashort lasers provide high
peak power with scalable average output power up
to 50 W and customer selected pulse durations in the
range of 600 fs to 3 ps in 50-2000 kHz repetition rate
range. IPG novel fiber lasers are much more efficient,
compact and easy to integrate into OEM equipment
than conventional lasers now on the market.
Technical Specifications
Specification
| Parameter | ULPF-50-750-30 | ULPP-50-1-30 | ULPF-150-750-20 | ULPP-150-1-20 |
| Wavelength, nm | 343 | |||
| Max. Average Power, W | 30 | 20 | ||
| Pulse Energy, µJ | 50 | 150** | ||
| Pulse Duration, ps | 0.75 | 1 | 0.75 | 1 |
| Repetition Rate, kHz | 50–2000 | |||
| Beam Quality, M² | <1.3 (1.2 typ.) | |||
| Parameter | Value | |||
| Control Unit Dimensions (W×D×H), mm | 448 × 580 × 133 | |||
| Optical Head Dimensions (W×D×H), mm | 160 × 337 × 100 | |||
| Cooling | Water | |||
| Supply Voltage, VAC | Single-phase 50–60 Hz, 100–240 | |||
| Optical Head Weight, kg | 5.5 | |||
| Power Consumption, W | <1200 | |||
