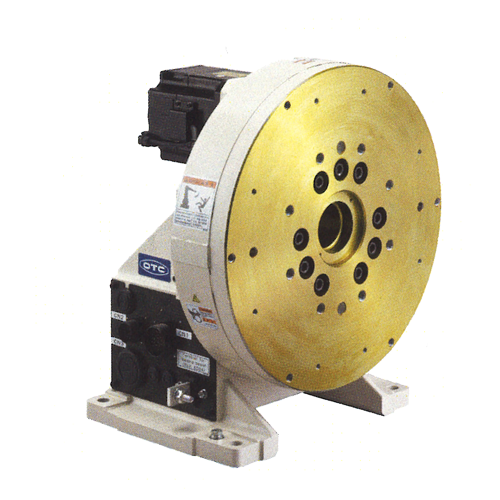

AII-1PC500 / AII-1PC1000
Product Description
**AII-1PC Series** High-speed motion increases production efficiency! * Faster Increasing productivity due to faster speed, 120 degrees per second (1PC500) * Accurate Adopting Non-Backrush mechanism for high accuracy. * Durable Simple drive system can reduce the risk of failure. * Easy Installation Designed for compact, lightweight and easy installation.
Technical Specifications
| Model Name | PC501 | PC1001 |
| Max. Payload Capacity | 500kg | 1000kg |
| Rotating Speed | 2.1dad/s[120°/s] | 1.3dad/s[72°/s] |
| Allowable Rotating Torque | 490N·m | 1078N·m |
| Position Repeatability | ±0.1 mm (Position at R300 mm) | ±0.1 mm (Position at R300 mm) |
| Stop Position | Random | Random |
| Mass (Weight) | 110kg | 193kg |
