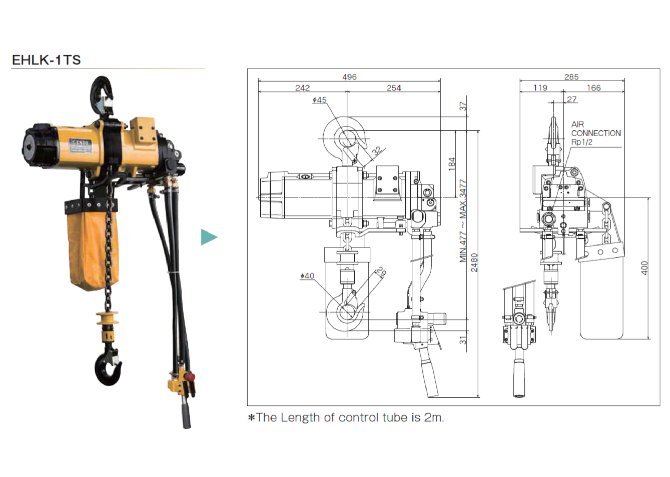

EHLK Series (CE Marked Model)
Product Description
Its capacity is 1000kg-2000kg. This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance. Since the overload protector is built into the main unit, the risk of damage to the overload protector module is reduced .
The load chain is extendable. EHLK series are equipped with an emergency stop button on the pendant switch as standard.
Technical Specifications
SPECIFICATION
| Model | Rated load (kg) | Stroke (m) | Air pressure Mpa(kgf/c㎡) | Lifting speed (m/min) | Air consumption (m³/min) | Chain (size x fall) | Air inlet | Mass (kg) |
| EHLK-1TS | 1000 | 3 | 0.4(4) | 3.3 | 1.3 | 7.1×1 | Rp 1/2 | 38.0 |
| 0.5(5) | 4.3 | 1.4 | ||||||
| 0.6(6) | 5.3 | 1.5 | ||||||
| EHLK-2TW | 2000 | 3 | 0.4(4) | 1.6 | 1.3 | 7.1×2 | Rp 1/2 | 46.0 |
| 0.5(5) | 2.1 | 1.4 | ||||||
| 0.6(6) | 2.6 | 1.5 |
