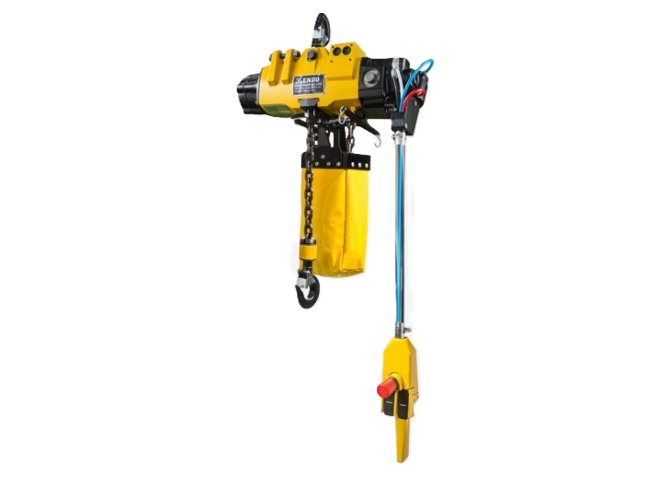

Type EHL-TW - Rated load between 1,000 and 6,000 kg
Product Description
## Double chain type This type of Air Hoist is equipped with a surface-hardened load chain that is made of alloy steel and has excellent toughness and wear resistance. The load chain is extendable.
Technical Specifications
| Model | Rated load (kg) | Stroke (m) | Air pressure Mpa(kgf/c㎡) | Lifting speed (m/min) | Air consumption (m³/min) | Chain (size x fall) | Air inlet | Mass (kg) |
|---|---|---|---|---|---|---|---|---|
| EHL-1TW | 1,000 | 3 | 0.4(4) | 3.7 | 0.95 | 6.3×2 | Rp 1/2 | 26.0 |
| 0.5(5) | 4.5 | 1.3 | ||||||
| 0.6(6) | 5.2 | 1.65 | ||||||
| EHL-2TW | 2,000 | 3 | 0.4(4) | 2.0 | 1.0 | 7.1×2 | Rp 1/2 | 42.0 |
| 0.5(5) | 2.6 | 1.4 | ||||||
| 0.6(6) | 3.0 | 1.8 | ||||||
| EHL-6TW | 6,000 | 3 | 0.4(4) | 1.0 | 1.75 | 12.5×2 | Rp 3/4 | 101.0 |
| 0.5(5) | 1.3 | 2.47 | ||||||
| 0.6(6) | 1.5 | 3.14 |
